Find gaps and overlaps in global topological boundaries

This example resolves topological plate polygons (and deforming networks) and detects any gaps and overlaps in their global coverage.

Anomalous sub-segments, locating the gaps/overlaps, are written to a file that can be loaded into GPlates to visualise alongside the dynamic plate polygons.

Gaps and overlaps are caused when:

• there is an area of the globe not covered by a topological boundary or network, or
• two (or more) topological boundary polygons overlap in some area of the globe.

This can also happen if two topological line sections are identical when ideally there should only be one of them (and it should be shared by two neighbouring topological boundaries).

Sample code

import pygplates


# Load one or more rotation files into a rotation model.
rotation_model = pygplates.RotationModel('rotations.rot')

# Load the topological plate polygon features (can also include deforming networks).
topology_features = pygplates.FeatureCollection('topologies.gpml')

# Our geological times will be from 0Ma to 'num_time_steps' Ma (inclusive) in 1 My intervals.
num_time_steps = 140

# 'time' = 0, 1, 2, ... , 140
for time in range(num_time_steps + 1):

    # Resolve our topological plate polygons (and deforming networks) to the current 'time'.
    # We generate both the resolved topology boundaries and the boundary sections between them.
    resolved_topologies = []
    shared_boundary_sections = []
    pygplates.resolve_topologies(topology_features, rotation_model, resolved_topologies, time, shared_boundary_sections)

    # We'll create a feature for any anomalous sub-segment we find.
    anomalous_features = []

    # Iterate over the shared boundary sections.
    for shared_boundary_section in shared_boundary_sections:

        # Iterate over the sub-segments that actually contribute to a topology boundary.
        for shared_sub_segment in shared_boundary_section.get_shared_sub_segments():

            # If the resolved topologies have global coverage with no gaps/overlaps then
            # each sub-segment should be shared by exactly two resolved boundaries.
            if len(shared_sub_segment.get_sharing_resolved_topologies()) != 2:

                # We keep track of any anomalous sub-segment features.
                anomalous_features.append(shared_sub_segment.get_resolved_feature())

    # If there are any anomalous features for the current 'time' then write them to a file
    # so we can load them into GPlates and see where the errors are located.
    if anomalous_features:

        # Put the anomalous features in a feature collection so we can write them to a file.
        anomalous_feature_collection = pygplates.FeatureCollection(anomalous_features)

        # Create a filename (for anomalous features) with the current 'time' in it.
        anomalous_features_filename = 'anomalous_sub_segments_at_{0}Ma.gpml'.format(time)

        # Write the anomalous sub-segments to a new file.
        anomalous_feature_collection.write(anomalous_features_filename)

Details

The rotations are loaded from a rotation file into a pygplates.RotationModel.

rotation_model = pygplates.RotationModel('rotations.rot')

The topological features are loaded into a pygplates.FeatureCollection.

topology_features = pygplates.FeatureCollection('topologies.gpml')

The topological features are resolved to the current time using pygplates.resolve_topologies().

By default both pygplates.ResolvedTopologicalBoundary (used for dynamic plate polygons) and pygplates.ResolvedTopologicalNetwork (used for deforming regions) are appended to the list resolved_topologies.

Additionally the resolved topological sections are appended to the list shared_boundary_sections.

resolved_topologies = []
shared_boundary_sections = []
pygplates.resolve_topologies(topology_features, rotation_model, resolved_topologies, time, shared_boundary_sections)

The resolved topological sections are actually what we’re interested in because their sub-segments have a list of topologies on them.

Not all parts of a topological section feature’s geometry contribute to the boundaries of topologies.

Little bits at the ends get clipped off.

The parts that do contribute can be found using pygplates.ResolvedTopologicalSection.get_shared_sub_segments().

for shared_sub_segment in shared_boundary_section.get_shared_sub_segments():

The list of topologies that share a sub-segment is obtained using pygplates.ResolvedTopologicalSharedSubSegment.get_sharing_resolved_topologies.

If the resolved topologies have global coverage with no gaps/overlaps then each sub-segment should be shared by exactly two resolved boundaries.

if len(shared_sub_segment.get_sharing_resolved_topologies()) != 2:

If a sub-segment is not shared by exactly two resolved boundaries then we record its feature.

anomalous_sub_segment_features.append(shared_sub_segment.get_resolved_feature())

Finally we write the anomalous features to a file.

anomalous_features_filename = 'anomalous_sub_segments_at_{0}Ma.gpml'.format(time)
anomalous_feature_collection.write(anomalous_features_filename)

Visualising gaps and overlaps in GPlates

The resulting output files such as anomalous_sub_segments_at_10Ma.gpml can be loaded into GPlates to see where the topological errors are located on the globe.

GPlates screenshot showing anomalous sub-segments (yellow) and dynamic plate polygons (blue) at 10Ma.

The following two screenshots show a zoomed-in view of a gap and an overlap.

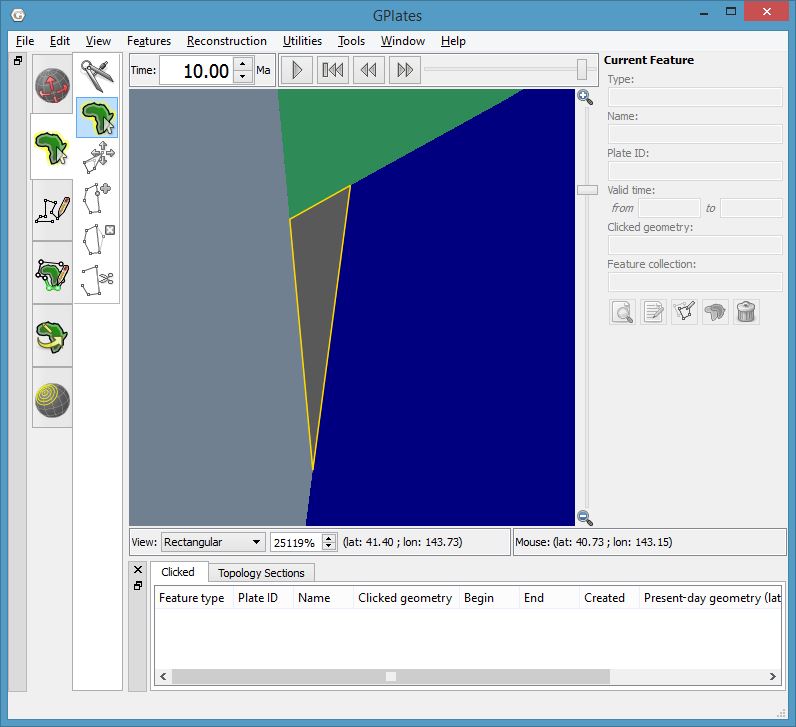

GPlates screenshot showing zoomed-in view of a gap in dynamic polygon coverage (outlined in yellow) at 10Ma.

GPlates screenshot showing zoomed-in view of an overlap in dynamic polygon coverage (outlined in yellow) at 10Ma.
